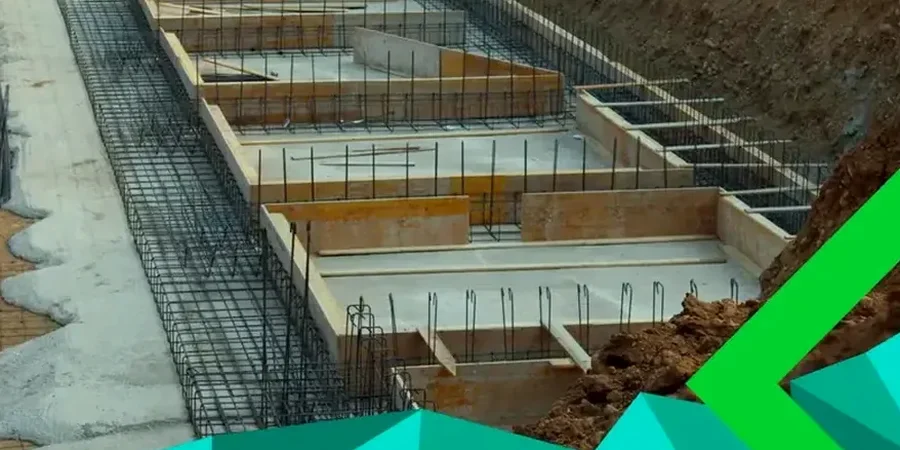

Shallow Foundation Design for North Bay’s Glacial Terrain

The first thing you notice on a North Bay site is the excavator bucket hitting a stubborn layer of dense glacial till about two meters down. Right past that, you often find soft varved silts from Lake Nipissing's old shoreline. We design shallow foundations here by matching the footing geometry to that exact stratigraphy. Our process starts with a CPT test to map the vertical stiffness profile without disturbing the sample, and then we correlate those readings with a plate load test when the client wants bearing capacity numbers they can take straight to the permit office.

A spread footing on untreated silt in North Bay loses 40% of its bearing capacity the moment you exceed the critical moisture content.

Our service areas

Process and scope

North Bay’s expansion along Highway 11 and the escarpment pushed development onto ground that was never farmed—too rocky or too wet. The old downtown sits on a relatively stable bench of Precambrian-derived till, but the newer subdivisions north of Trout Lake hit pockets of compressible silt that can settle unevenly under strip footings. Our designs lean heavily on NBCC 2020 Table 9.4.4.1 for presumptive bearing values, but we always calibrate with site-specific data. Key parameters we control: frost protection depth at 1.8 m minimum, eccentricity limits per CSA A23.3, and immediate settlement estimates using elastic half-space theory with a modulus from in-situ permeability tests that confirm drainage conditions.

Shallow Foundation Design for North Bay’s Glacial Terrain — Technical reference — North Bay Ontario

Site-specific factors

The mistake we see too often is a builder cutting a footing trench in October, leaving it open overnight, and pouring concrete the next morning without checking frost penetration. In North Bay, a single freeze-thaw cycle at the bearing surface can reduce the undrained shear strength of the till by 30 percent. Another classic error is assuming that bedrock is solid because the drill rig hit refusal at 1.5 m. We have seen fractured gneiss just below the refusal point that collapses under a loaded strip footing. That is why we specify a minimum of two boreholes or CPT soundings per structure, even for a single-family dwelling, and we never rely solely on presumptive values from the building code when we are within 100 meters of the escarpment.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnicalengineering.xyz

Applicable standards

NBCC 2020 (National Building Code of Canada), CSA A23.3:19 (Design of Concrete Structures), ASTM D1194 (Plate Load Test, when applicable), Ontario Regulation 332/12 (Building Code Act)

Reference parameters

Parameter	Typical value
Minimum frost protection depth	1.8 m (NBCC 2020)
Presumptive bearing (dense till)	150–250 kPa
Presumptive bearing (silty sand)	75–150 kPa
Maximum allowable settlement	25 mm (total), 20 mm (differential)
Eccentricity limit (CSA A23.3)	≤ B/6 for soil-supported footings
Sliding resistance factor	1.5 (static), 1.1 (seismic)
Typical footing embedment	1.2–2.0 m below finished grade

Quick answers

What is the typical cost range for a shallow foundation design report for a single-family home in North Bay?

For a standard residential lot in North Bay, a complete shallow foundation design package—including two CPT soundings, bearing capacity calculations, and a sealed report—runs between CA$2.260 and CA$4.160. The final figure depends on access, proximity to the escarpment, and whether we need to bring in a drill rig for refusal confirmation.

How deep do footings need to be in North Bay to avoid frost heave?

The NBCC 2020 prescribes a minimum frost protection depth of 1.8 m for the North Bay area. However, that is a guideline. If we find well-drained granular fill below 1.2 m with no silt lenses, we can often justify a reduction with an engineered insulation detail. The key is confirming drainage with a permeability test before making that call.

Can you design a shallow foundation on the clay soils near Lake Nipissing?

Yes, but it requires a careful consolidation analysis. The varved clays and silts near the lake have a high compression index and can settle for years under load. We typically combine a preload program with strip drains or specify a stiffened raft if the schedule is tight. We always run at least one oedometer test on an undisturbed sample from the foundation depth to calibrate the settlement model.
