Vibrocompaction Design in North Bay: Densifying Fill and Native Sands

A warehouse expansion off Highway 11 hit compacted fill that still showed 15% relative density at 4 meters depth. The structural slab would have cracked within two winters. That is the reality in North Bay—glacial outwash and deltaic sands look competent but often hide loose zones that settle under cyclic loading. Our vibrocompaction design starts from CPT logs and grain-size curves to determine if the soil is treatable, then specifies grid spacing, probe energy, and acceptance criteria tied to the NBCC 2020 ultimate limit state. We do not just hand over a plan; we stay through the trial grid and the post-treatment CPT test to confirm that every square meter meets the target density. When the Ministry of Transportation’s regional specs require 70% relative density below the frost line at 1.8 meters, the design must also factor in the 150 kPa bearing pressure the client needs.

Vibrocompaction only works when the fines content stays below 12 to 15%—every percentage point above that changes the treatment mechanism completely.

Our service areas

Process and scope

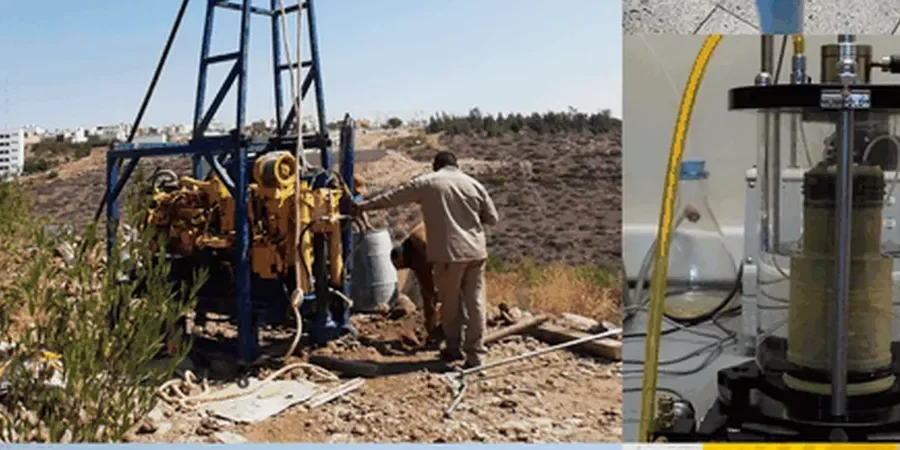

The Precambrian Shield dominates North Bay’s bedrock, but the overburden tells a different story: thick sequences of sand and silt deposited by glacial Lake Algonquin cover much of the city south of Trout Lake. These deposits can be 30 meters deep and often contain thin silt seams that complicate drainage during vibrocompaction. A design that works in the homogeneous sands of the Callander Bay area may fail near Chippewa Creek, where organic lenses and fluctuating groundwater at 2 meters depth demand a staged approach with stone columns as an alternative treatment. We pull grain-size distributions from our grain-size lab runs to verify the fines content stays below 12%—a threshold from the Brown and D’Appolonia method—before committing to vibratory methods. The design package includes probe type selection, amperage curves, and a quality control schedule aligned with CSA A23.3 provisions for ground improvement.

Vibrocompaction Design in North Bay: Densifying Fill and Native Sands — Technical reference — North Bay Ontario

Site-specific factors

North Bay’s development shifted from railway-era downtown to highway-oriented commercial strips after the 1960s, pushing construction onto former wetland margins and uncontrolled fill. Many of those fills were placed without compaction control, and thirty years of snowmelt infiltration have created perched water tables that reduce effective stress. A vibrocompaction design that ignores these perched conditions risks void collapse during vibration—the ground literally drops a foot under the rig. The bigger liability sits with the assumption that native sands are clean. We have pulled split-spoon samples from sites near the airport where fines content jumped from 8% to 22% across five meters, and that is the difference between a successful density gain and a site that needs a full redesign with stone columns after the contractor has already mobilized. A well-documented design brief, supported by pre-treatment CPTs and lab plasticity tests, protects both the owner and the contractor from that scenario.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnicalengineering.xyz

Video overview

Applicable standards

NBCC 2020 Division B (Structural Design), CSA A23.3: Design of Concrete Structures (ground improvement provisions), ASTM D2487 (Unified Soil Classification System), ASTM D5778 (CPT friction ratio and tip resistance)

Reference parameters

Parameter	Typical value
Treatable soil range	Fines <12%, D10 >0.15 mm
Typical treatment depth	4 m to 25 m below grade
Grid spacing (trial)	1.8 m to 3.5 m triangular
Target relative density	70–85% (MTO regional spec)
Post-treatment verification	CPT every 50 m²
Probe power range	130 kW to 260 kW electric
Applicable standard	CSA A23.3, NBCC 2020 Div. B

Quick answers

What does vibrocompaction design cost for a typical North Bay commercial lot?

Design fees for a standard commercial lot in North Bay generally range from CA$2,110 to CA$6,520, depending on the number of CPT soundings required, the complexity of the soil profile, and whether a trial grid with supervision is included. Sites with highly variable stratigraphy near the La Vase River corridor tend toward the upper end because we add intermediate CPTs to map the silt seams.

How do I know if my North Bay site is suitable for vibrocompaction?

The short answer is fines content. The long answer requires a CPT profile and a grain-size curve. If your soil has less than 12% passing the #200 sieve and the friction ratio stays below 1.5%, vibrocompaction is likely effective. We also check the D10 and the coefficient of uniformity because poorly graded sands densify more easily than well-graded ones. Sites with interbedded silt layers—common in the glaciolacustrine deposits south of Trout Lake—may need a hybrid design.

What post-treatment verification does the Ontario Building Code require?

The NBCC 2020, adopted by Ontario, requires that ground improvement designs demonstrate compliance with the specified performance criteria. For vibrocompaction, this translates to post-treatment CPT soundings at a frequency that captures spatial variability—typically one sounding per 50 square meters, with additional tests where the trial grid showed anomalous results. We compare tip resistance and sleeve friction before and after, and we report relative density gain against the design target. The final report is signed and stamped for the municipal permit file.
