Field Density Testing in North Bay: Sand Cone Method Compliance

The sand cone apparatus arrives on site in a reinforced case: a calibrated one-gallon jar, a precision-engineered cone valve, and a base plate machined flat to within thousandths of an inch. In North Bay, where the Precambrian Shield outcrops alongside deep glacial till, this equipment faces a unique challenge. Compaction acceptance here is not a formality. The city sits at 46.3°N latitude, where winter frost can reach depths of 1.8 meters, making seasonal ground movement a constant variable. Before any foundation backfill or roadway base course is signed off, the in situ dry density must be verified against the laboratory Proctor maximum. The sand cone density test delivers that verification directly, using Ottawa sand that flows into the excavated hole with a calibrated bulk density that the technician records on site. It is the reference method specified in CSA A23.3 for soils containing particles larger than 6 mm, which describes most of the granular fill sourced from North Bay's own aggregate pits.

A half-percent shift in sand bulk density can fail a lift that is actually in spec. In North Bay's lake-effect humidity, we re-check calibration every four hours.

Our service areas

Process and scope

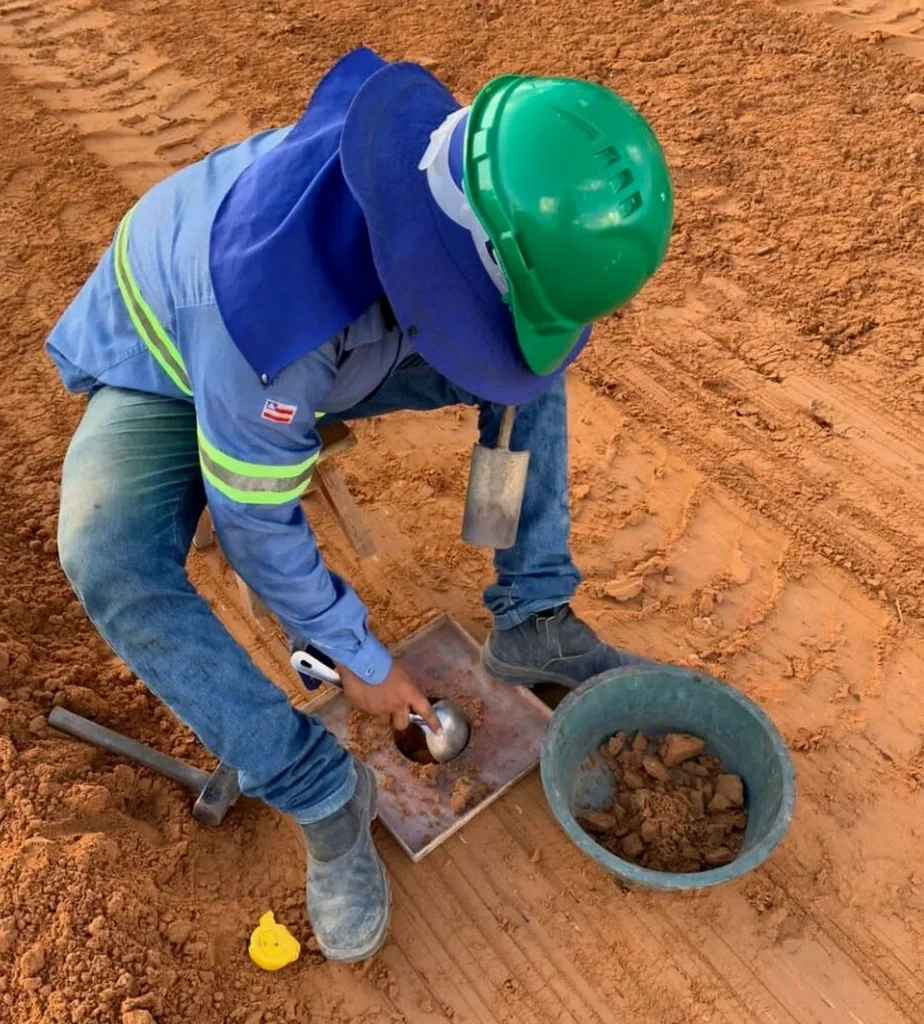

A detail that only comes with local experience: the sand cone calibration must be re-checked whenever the technician moves from a site on the north side of Trout Lake to one near the airport. Why? The moisture content in the calibration sand changes subtly with the lake-effect humidity that sweeps across the Cambrian Shield. A half-percent shift in sand bulk density can skew the field density calculation by enough to fail a compacted lift that is actually in spec. That is why our field crews carry a calibration kit at all times and perform a check every four hours of continuous testing. The method itself is deceptively simple: excavate a hole approximately 15 cm in diameter and 15 cm deep through the full lift thickness, carefully recover all the excavated soil, then fill the hole with the calibrated sand through the cone valve. The mass of sand remaining in the jar divided by its bulk density gives the hole volume. Combined with the soil mass, you get the wet density, and after oven-drying a sample, the dry density and percent compaction relative to the Proctor. When the fill material contains cobbles or oversized particles — common in North Bay's glacial deposits — we often pair this test with a gradation analysis to apply the proper rock correction per ASTM D4718.

Field Density Testing in North Bay: Sand Cone Method Compliance — Technical reference — North Bay Ontario

Site-specific factors

NBCC Division B Section 5.6 requires compaction testing on all engineered fill placed under footings, floor slabs, and pavement subgrades. In North Bay, this is not a box-ticking exercise. The native silty till found across the city — particularly in the Ferris and West Ferris neighborhoods — can lose 30% of its bearing capacity if placed at 92% Standard Proctor instead of 98%. A single under-compacted lift under a shallow footing on Champlain Sea clay remnants can trigger differential settlement that cracks masonry within the first two freeze-thaw cycles. The sand cone test catches those deficient lifts before they are buried under the next layer. The method directly measures the in-place density of the soil as it sits, undisturbed by drilling fluid or vibration. For critical backfill against retaining walls and around buried utilities on Highway 11 widening projects, the sand cone provides a defensible record of compaction that stands up to MTO and municipal inspection.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnicalengineering.xyz

Applicable standards

NBCC 2020 Division B Section 5.6 (Compaction), CSA A23.3-14 Annex F (Density test methods), ASTM D1556 / D698 / D4718, OPSS 501 (Compacting)

Reference parameters

Parameter	Typical value
Method standard	ASTM D1556 / CSA A23.3-14 Annex F
Calibration sand	Graded Ottawa sand (C-109)
Minimum hole volume	700 cm³ for max. particle size ≤ 25 mm
Typical test depth	Full lift thickness (150-200 mm typical)
Particle size limit	Up to 50 mm (with rock correction)
Report turnaround	Same-day field report, final within 24h
Compaction frequency	1 test per 1,000 m² per lift (NBCC Table 5.6.1.1)

Quick answers

What does a field density test cost in North Bay?

A standard sand cone density test in North Bay typically ranges from CA$130 to CA$180 per test location, depending on the number of tests performed in a single mobilization and the travel distance to the site. Volume discounts apply for projects requiring daily testing over several weeks.

How deep does the sand cone test go?

The sand cone method tests through the full thickness of one compacted lift, which is usually 150 to 200 mm thick for granular fill. The technician excavates a hole about 15 cm in diameter to the bottom of the lift, recovering all the material to calculate the in-place density of that specific layer.

Can the sand cone be used on gravel with large stones?

Yes, with a rock correction. When the fill contains cobbles or particles larger than 19 mm, the oversized material is sieved out on site, weighed, and its volume is calculated based on the specific gravity of the rock. This correction is applied to the hole volume measured by the sand cone, per the procedure in ASTM D4718.
