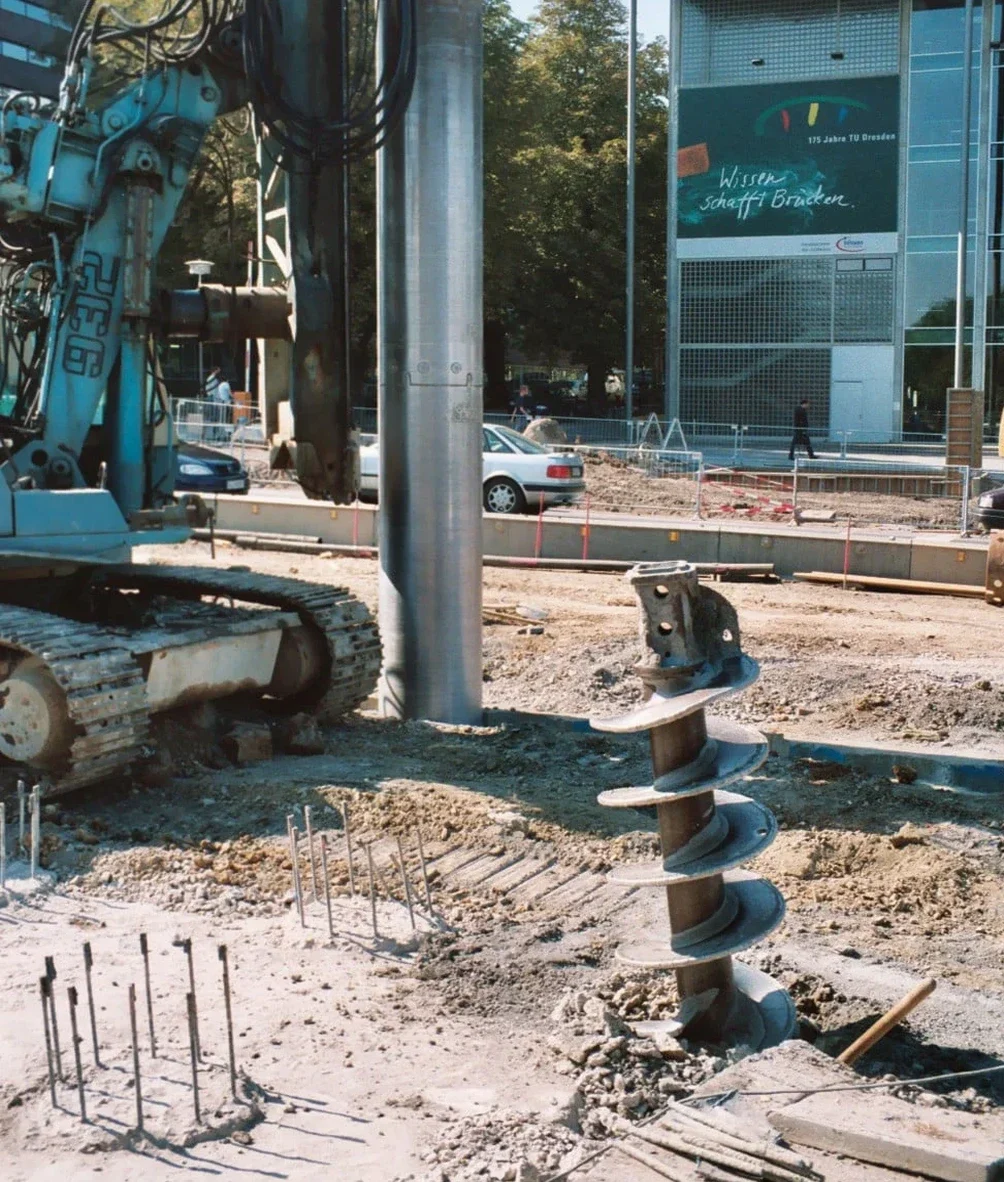

Pile Foundation Design in North Bay Ontario: Geotechnical Analysis & NBCC Compliance

North Bay sits at an elevation of 197 meters, straddling a transition zone between the exposed rock of the Canadian Shield and the deep glacial lake sediments of the Nipissing Lowlands. This geological contrast defines every deep foundation decision in the area. A single project can encounter granite bedrock at 3 meters on one side and 18 meters of compressible silty clay on the other. Pile foundation design in North Bay Ontario requires forensic-level geotechnical interpretation: we don't just log boreholes, we map the buried topography of the bedrock surface. The 2020 edition of the National Building Code of Canada (NBCC) mandates site-specific seismic hazard assessments for structures founded on Site Class E or F soils, a common scenario near the shoreline of Lake Nipissing. Our approach integrates in-situ testing with advanced laboratory programs to deliver pile capacities that account for downdrag, frost heave, and lateral spreading potential. Before mobilizing a drill rig, many clients combine our analysis with a CPT test to refine the soil behavior type profile in the transition zone between dense till and soft clay, providing continuous data that complements discrete SPT samples and reduces uncertainty in shaft friction calculations.

Bedrock in North Bay can plunge from 2 meters to 20 meters within a single city block; your pile design lives or dies on the borehole density.

Process and scope

The Quaternary geology of North Bay is dominated by glaciolacustrine deposits from the post-Algonquin lake phase, which left behind rhythmically bedded varved clays with thin silt partings. These soils exhibit significant anisotropy; vertical permeability can be two orders of magnitude higher than horizontal, complicating consolidation settlement predictions for pile groups. For end-bearing piles socketed into the Precambrian gneiss that outcrops along the Highway 11 corridor, we specify rock socket design parameters based on intact rock uniaxial compressive strength tests and RQD assessments from oriented core runs. Our laboratory is accredited to CSA A23.3 standards for concrete testing, ensuring the structural design of reinforced concrete piles meets the durability requirements for sulfate exposure common in the Nipissing clay. In cases where shallow bedrock is absent and friction piles are the only option, we incorporate results from grain size analysis and Atterberg limits to calibrate the beta method for shaft resistance in normally consolidated clays. The interaction between the pile cap and the seasonally frozen ground is another critical design check, especially for lightly loaded structures, which we address by specifying insulation geometries and analyzing frost adhesion forces per CAN/CSA-S500 guidelines.

Site-specific factors

In North Bay, we routinely observe that the biggest risk to a pile-supported structure isn't the axial load, but the lateral demands from a combination of expanding ice lenses and low-strain seismic shaking. Varved clays near Airport Hill can generate down-drag forces of 25 to 40 kPa when site grading triggers consolidation in the upper 10 meters. If not explicitly accounted for in the geotechnical report, these negative skin friction loads can overload the structural capacity of the pile, leading to settlement that continues for years after construction. The NBCC 2020 hazard values for the region—a PGA of roughly 0.08g on firm ground—can double at the surface when soft clay amplifies the motion. A pile that performs perfectly under static conditions may hinge at the clay-till interface during a distant event from the Western Quebec Seismic Zone. We evaluate this using p-y analysis with site-specific modulus reduction curves, not generic RQD-based assumptions. A seismic refraction survey across the building footprint helps us identify steep bedrock ramps that could cause differential pile driving refusal and unanticipated construction costs.

Applicable standards

NBCC 2020 (National Building Code of Canada, Seismic Hazard Tool data), CSA A23.3-19 (Design of Concrete Structures), CAN/CSA-S500-14 (Thermosyphon Foundations in Permafrost, adapted for frost heave analysis), ASTM D1143/D1143M (Standard Test Methods for Deep Foundation Elements Under Static Axial Compressive Load)

Reference parameters

Parameter	Typical value
Design standard for structural concrete	CSA A23.3-19
Seismic design basis	NBCC 2020, Site Class C through E
Typical bedrock type (socket design)	Precambrian gneiss and migmatite
Predominant soil unit (friction piles)	Glaciolacustrine varved clay and silt
Minimum pile embedment into competent rock	1.5 × pile diameter (typical socket)
Frost penetration depth (design reference)	1.8 m below finished grade

Quick answers

What is the typical cost range for a pile foundation design package for a residential project in North Bay?

For a single-family home or cottage requiring a pile foundation design, the engineering fee typically falls between CA$2,360 and CA$8,940. The final cost depends on the number of piles, the complexity of the soil profile, and whether a site-specific seismic hazard analysis is required per NBCC 2020. This fee covers the geotechnical report, structural design of the piles and pile caps, and construction review coordination.

How does the NBCC 2020 seismic hazard affect pile design in the North Bay area?

The NBCC 2020 provides uniform hazard spectra for a 2,475-year return period. In North Bay, the seismic hazard is moderate, but the presence of soft clay (Site Class E) amplifies short-period spectral accelerations. Our pile designs incorporate kinematic soil-pile interaction effects, checking for curvature demands at the interface between the soft clay and the underlying dense till. We also verify that liquefaction-induced downdrag is not a concern for the dense sand layers occasionally found beneath the varved clay.

Can you design pile foundations that resist frost heave in North Bay's cold climate?

Yes, frost heave is a primary design consideration. We analyze the adfreeze bond stress between the pile shaft and the seasonally frozen soil using CAN/CSA-S500 guidelines. For heated structures, we size the pile cap insulation to maintain the frost line outside the pile group footprint. For unheated structures like parking garages or storage sheds, we specify a minimum pile depth to prevent uplift failure from tangential heave forces, typically requiring an embedment of at least 1.8 meters below the design frost penetration level.
